Understanding airfoils and wings is essential for optimizing aircraft performance, enabling efficient lift generation, minimizing drag, improving stability, and supporting advanced aerodynamic design across subsonic, transonic, and supersonic regimes.

Course Outcome
This course is designed to equip students with fundamental and advanced aerodynamic principles, including airfoil behavior, lift and drag prediction, finite-wing effects, and compressibility considerations. They will gain skills to analyze and design wings using theories like thin airfoil and lifting line, enabling applications in aircraft design, UAV development, performance assessment, and aerodynamic optimization.
Pedagogical Approaches
Animated content, 3D Simulations, and Video lecture integrations
Prerequisite Subjects
Fluid Mechanics
Explore Lessons
Module 1: Airfoil Nomenclature
Module 2: Aerodynamic Forces and Moments
Module 3: Kutta Condition
Module 4: Thin Airfoil Theory
Module 5: Finite Wing Theory
Module 6: Prandtl Lifting line Theory
Module 7: Critical Mach Number
Module 8: Supercritical Airfoil & Area Rule
- Camber – curvature of mean line
- Maximum Camber – highest camber point
- Thickness – maximum airfoil thickness
- Leading Edge Radius – front roundness
- Trailing Edge – rear sharp edge
- Chord Line – Straight line connecting the leading and trailing edges
- Mean Camber Line – A curve halfway between the upper and lower surfaces of the airfoil
NACA 5-Series: Uses ideal lift coefficient and refined camber line.
NACA 6-Series: Designed for laminar flow and low drag.
NACA Airfoil Families – Advantages, Disadvantages & Applications
| NACA Family | Advantages | Disadvantages | Applications |
|---|---|---|---|
| 4-Digit | 1. Good stall characteristics 2. Small center of pressure movement 3. Roughness has little effect | 1. Low maximum lift coefficient 2. Relatively high drag 3. High pitching moment | General aviation, Horizontal tails, Supersonic jets, Helicopter blades, Shrouds, Missile fins |
| 5-Digit | 1. Higher maximum lift coefficient 2. Low pitching moment 3. Roughness has little effect | 1. Poor stall behavior 2. Relatively high drag | General aviation, Piston-powered bombers, Transports, Commuters, Business jets |
| 16-Series | 1. Avoids low pressure peaks 2. Low drag at high speed | 1. Relatively low lift | Aircraft propellers, Ship propellers |
| 6-Series | 1. High maximum lift coefficient 2. Very low drag (narrow range) 3. Optimized for high speed | 1. High drag outside optimum range 2. High pitching moment 3. Poor stall behavior 4. Susceptible to roughness | Piston-powered fighters, Business jets, Jet trainers, Supersonic jets |
| 7-Series | 1. Very low drag (narrow range) 2. Low pitching moment | 1. Reduced maximum lift 2. High drag outside optimum 3. Poor stall behavior 4. Susceptible to roughness | Seldom used |
Airfoil Nomenclature
Application of Airfoil

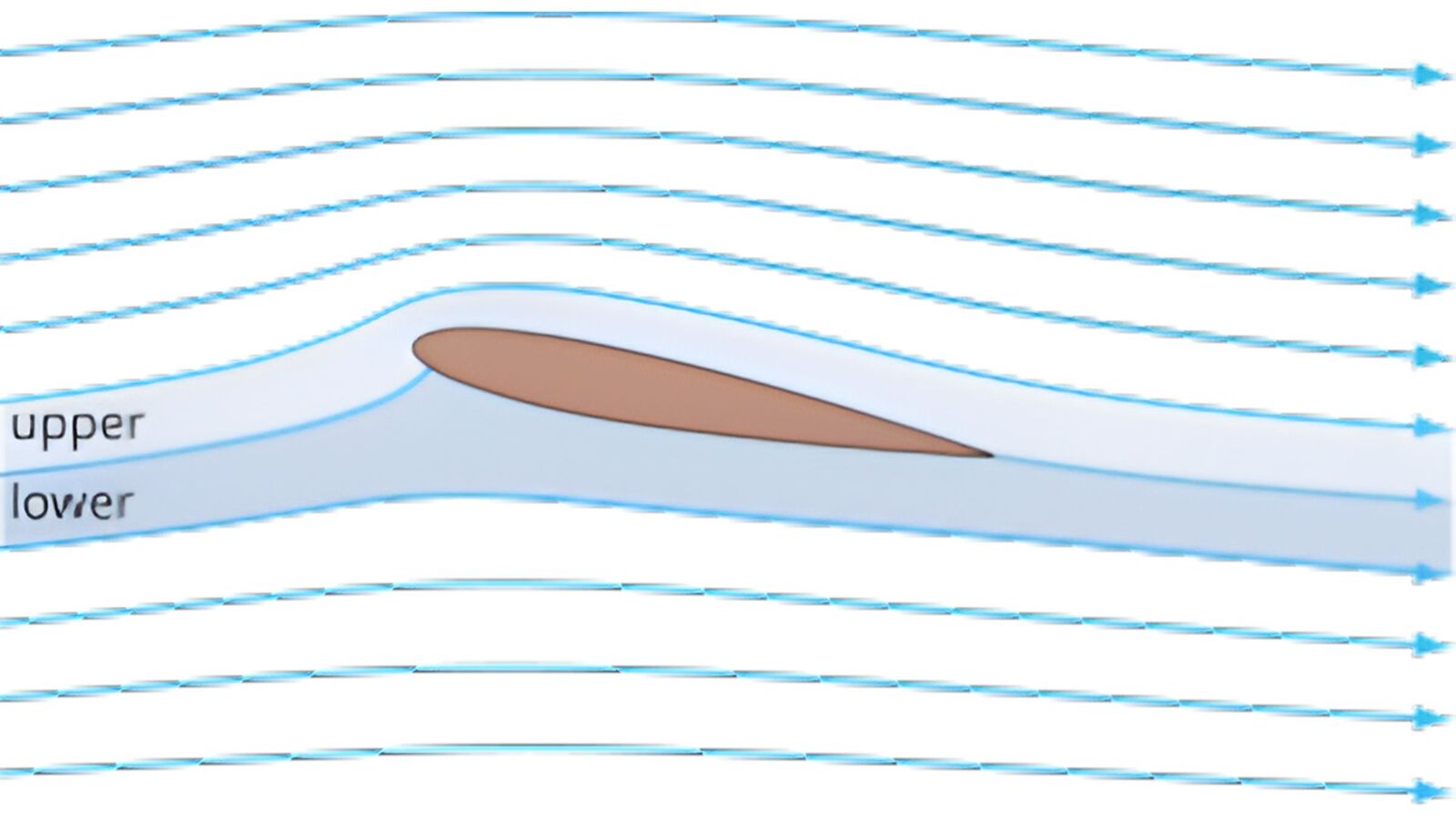

CL = L / (0.5 × ρ × V² × S)
CL increases with angle of attack until stall. Typical slope ≈ 0.1 per degree.
Cambered airfoils have higher CL compared to symmetric airfoils.
CD = D / (0.5 × ρ × V² × S)
CD consists of parasite drag, induced drag, and wave drag.
The total drag polar is: CD = CD0 + CL² / (π × AR × e).
CM = M / (0.5 × ρ × V² × S × c)
Indicates pitching behavior. Negative Cm means stable, nose-down moment.
Cambered airfoils generate a negative pitching moment.
| Coefficient | Meaning | Role | Depends On |
|---|---|---|---|
| CL | Lift capability | Minor | AoA, wing shape |
| CD | Drag produced | Major | Re, surface condition |
| Cm | Pitching moment | Critical | CG, camber, tail size |
Thin Airfoil Theory : Watch now
Import Airfoil in NASAOpen VSP: Watch now
Different types of Winf Planform
Contract between Geometric and Aerodynamic twist
Derivation of Lifting Line Theory
Wing design using NASA OpenVSP
NACA Airfoil Series - MCQ Quiz
1. Anderson, John D., Jr. A History of Aerodynamics and Its Impact on Flying Machines, Cambridge University Press , New York
